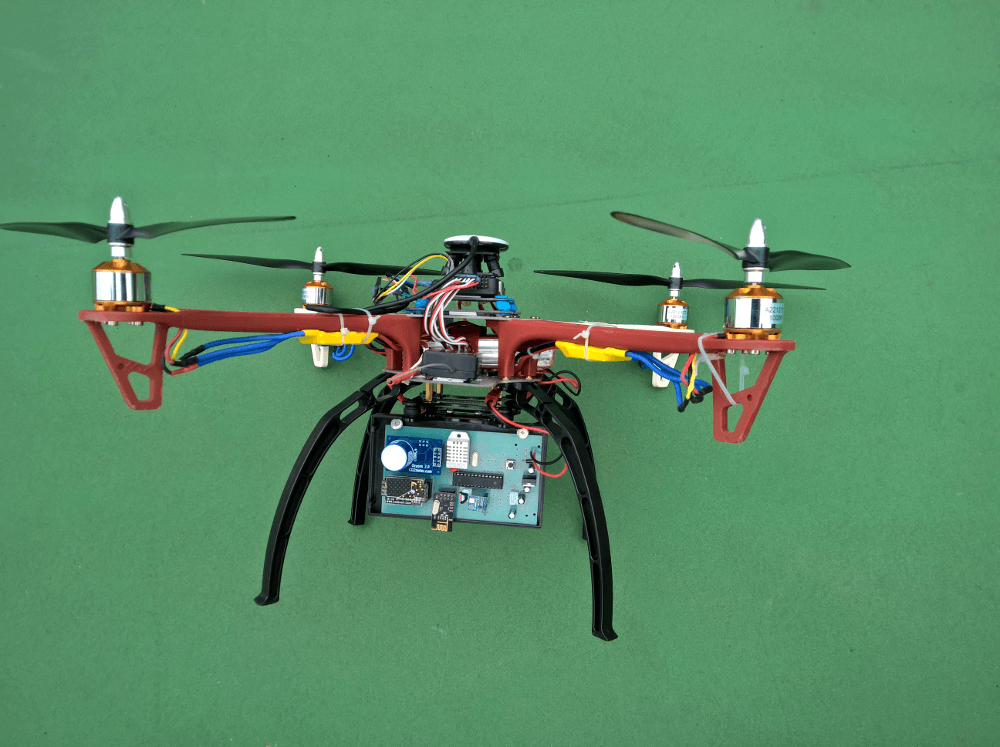

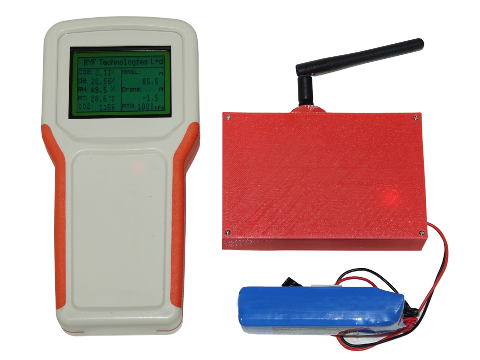

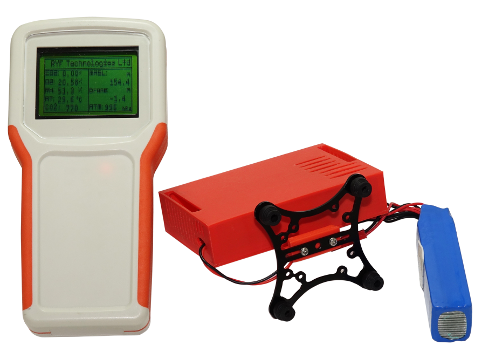

Drone Wireless Gas Analyzer Instrument.

  • Features
  • Long range wireless sensors.
  • Accurate and reliable sensors on board.
  • 6 sensors in a compact and light package.
  • AA or Lithium bateries for receiver (optional).
  • 7 ~ 12 V Input voltage transmitter (Drone ready). Perfect for custom made or proffesional drones (Copters).
  • For scientific enviromental analysis and studies in cities, fires, volcanos, factory chimneys, etc.
Technical Information
CO2 Sensor Range: 0.04 to 5% (or 0.04 to 2%, optional).
Accuracy: For 5% Sensor: +- 200 ppm +-10% of reading.
For 2% Sensor: ±0.02% volume CO2 ±3% of reading.
Operating Temperature: 5 to 50 °C.
Operating Humidity: 0 to 85% RH non condensed.
Life expectancy: 15 years in normal commercial enviroments.
Oxygen Sensor Measuring range: 0 to 25%.
Accuracy: +- 2%.
Operating Temperature: -30 to 60 °C.
Life Expectancy: 5 years in normal commercial enviroments.
Humidity Sensor Measuring range: 0 to 100% HR.
Accuracy: +-5%.
Temperature Sensor Range: -55 to 125 °C.
Accuracy: +- 1%
Barometric Sensor Pressure sensing range: 300-1100 hPa (9000m to -500m above sea level).
Up to 0.03hPa / 0.25m resolution.

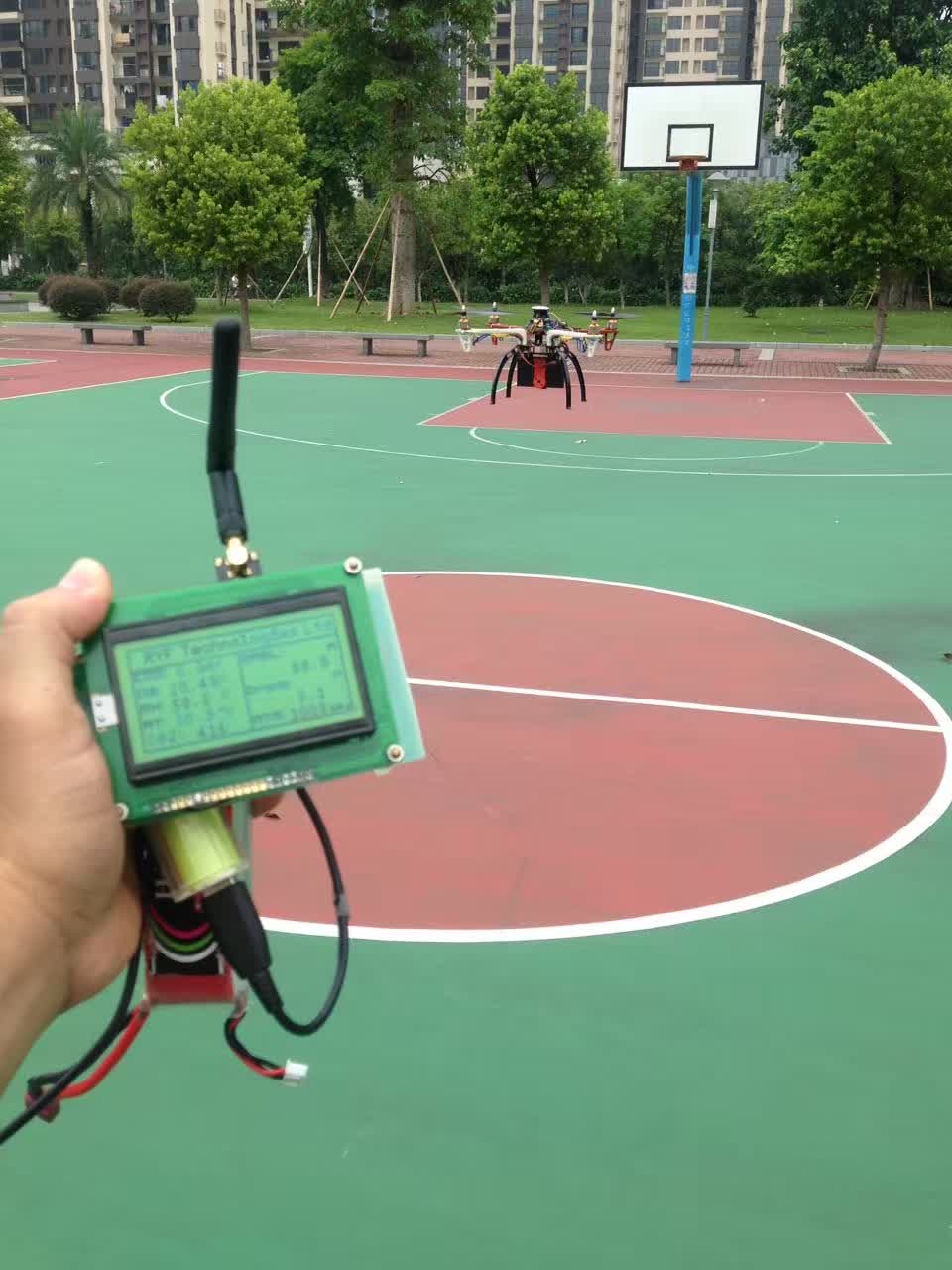

Wireless transmitter up to 500 meters distance.
